Description
Technical parameters |
|||

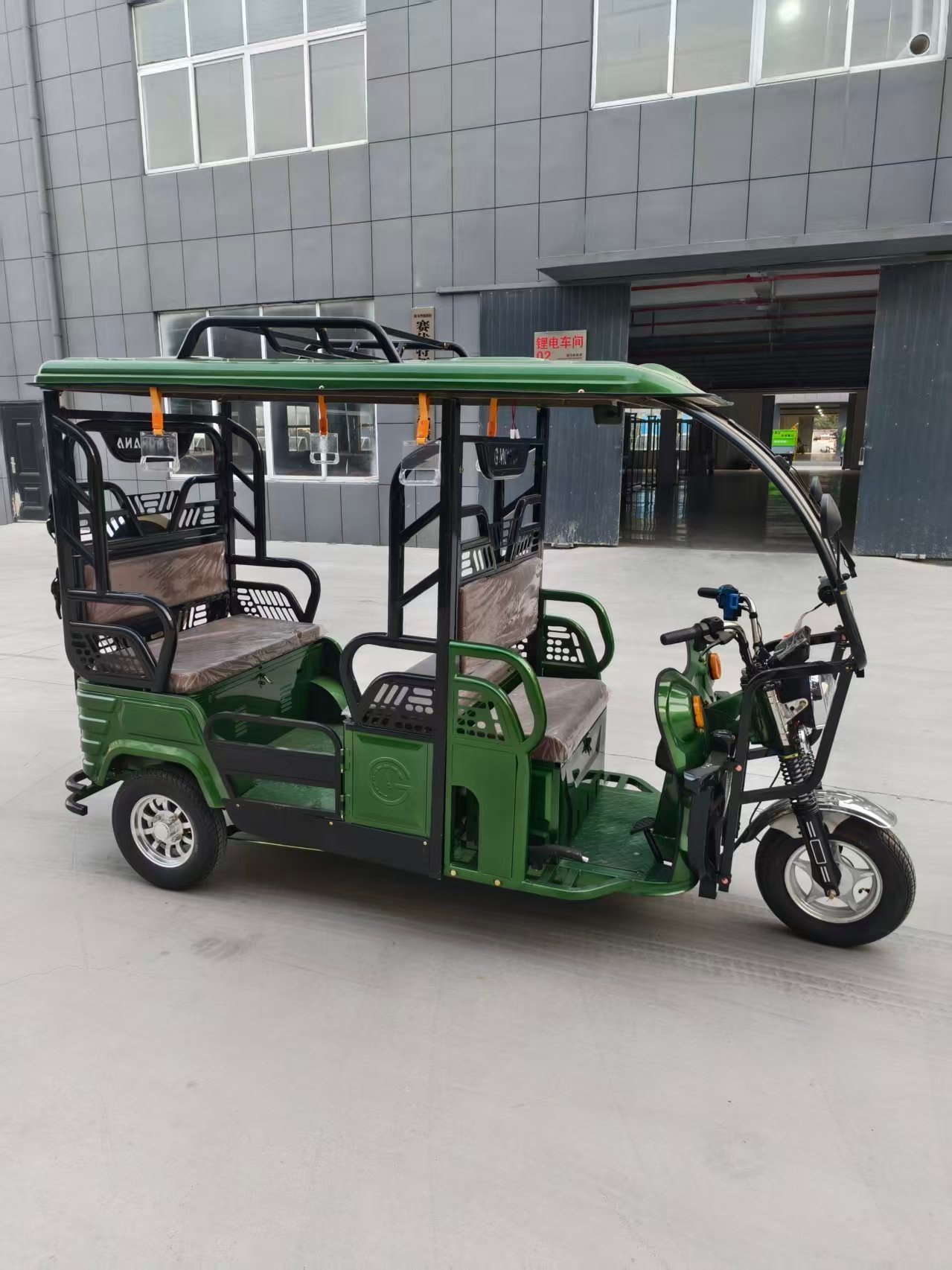

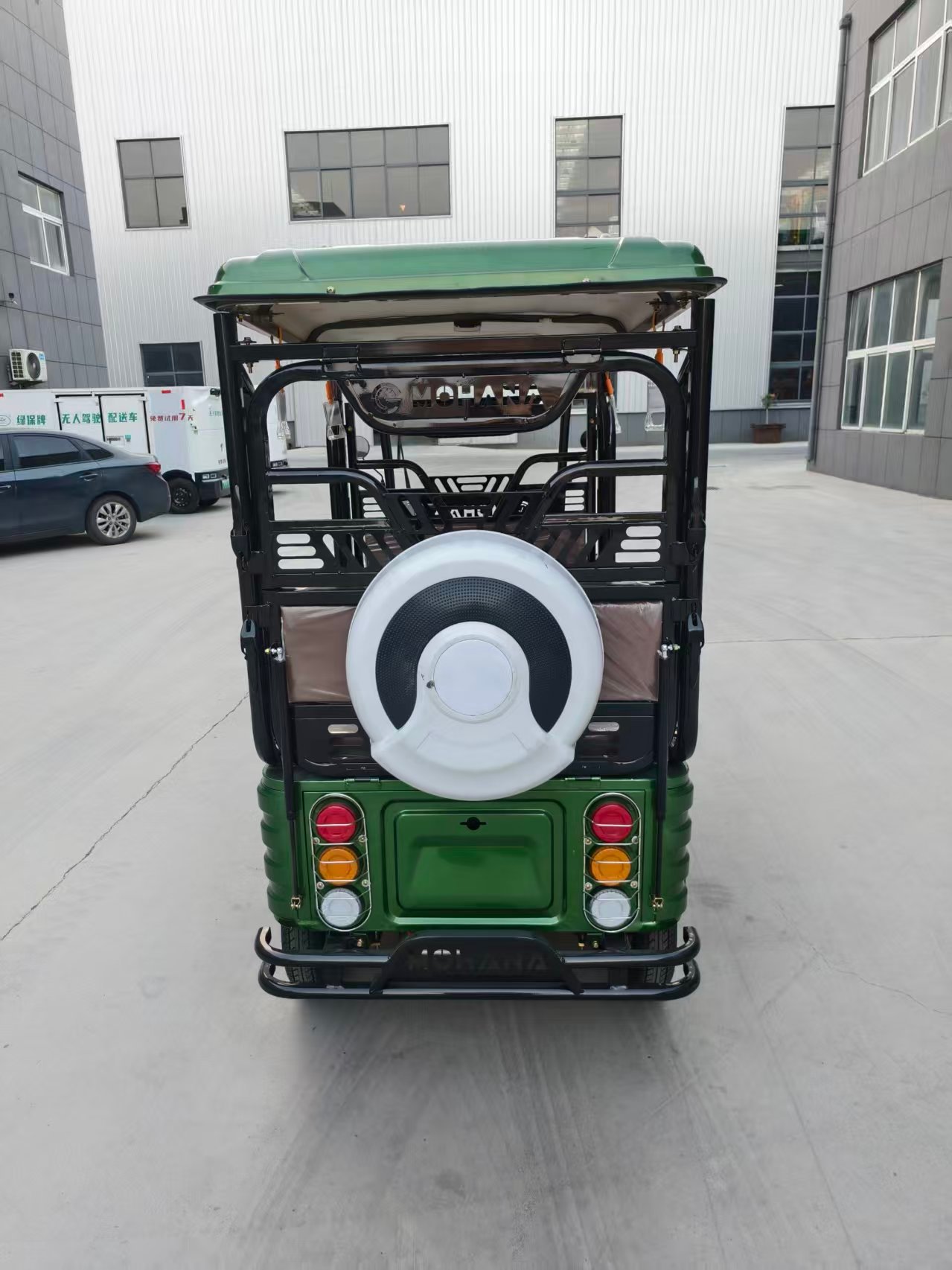

| Model | LB1500DZK001 | ||
| Vehicle Dimensions | 2800*1020*1850mm | ||
| Rated Passenger Capacity | 6 people | ||
| Minimum Ground Clearance | 130mm | ||
| Minimum Turning Radius | 4m | ||
| Maximum Operating Speed | 25km/h | ||
| Maximum Gradeability | 10% | ||
| Rated Load Capacity | 500kg | ||
| Driving Range | 45km | ||
| Charging Time | 6-8 hours (80% discharge rate) | ||
| Electric motor | 60V 1500W High-Magnetic Steel Brushless Differential Motor | ||
| Controller | 60V 24-Tube Brushless Controller | ||
| Battery | 60V 52Ah Maintenance-Free High-Efficiency Lead Acid Battery | ||
| Charger | Portable Smart Automatic Charger | ||
| Lights and signals | LED Headlights, Left and Right Turn Signals, Brake Lights, Running Lights, Instrument Panel, Electric Horn, Reversing Horn, Work Warning Light(Optional) | ||
| Frame | Integral Welded Frame + Pickling, Phosphating, Electrophoretic Painting | ||
| Powertrain | Rear-wheel drive, equipped with forward and reverse gears | ||
| Steering | Handlebar steering mechanism | ||
| Suspension | Front suspension: Reinforced double-tube front fork with coil springs Rear suspension: Leaf spring non-independent suspension |
||
| Rear axle | Integrated differential rear axle | ||
| Brake | Foot-operated mechanical linkage drum rear brake + left-hand lever cable-operated front brake + manual mechanical parking brake |
||
| Tire | Front and rear wheels: 3.75-12 | ||
| Paint | High-grade automotive paint | ||
| Body | Steel frame + steel plate bent and welded body | ||
| Instrument panel | LCD instrument panel, ignition switch, instrument cluster, combination switch | ||
| Seat | Leather soft seat + leather soft backrest | ||
| Battery | 72V,100AH lithium battery(You can choose others capacity) | ||
