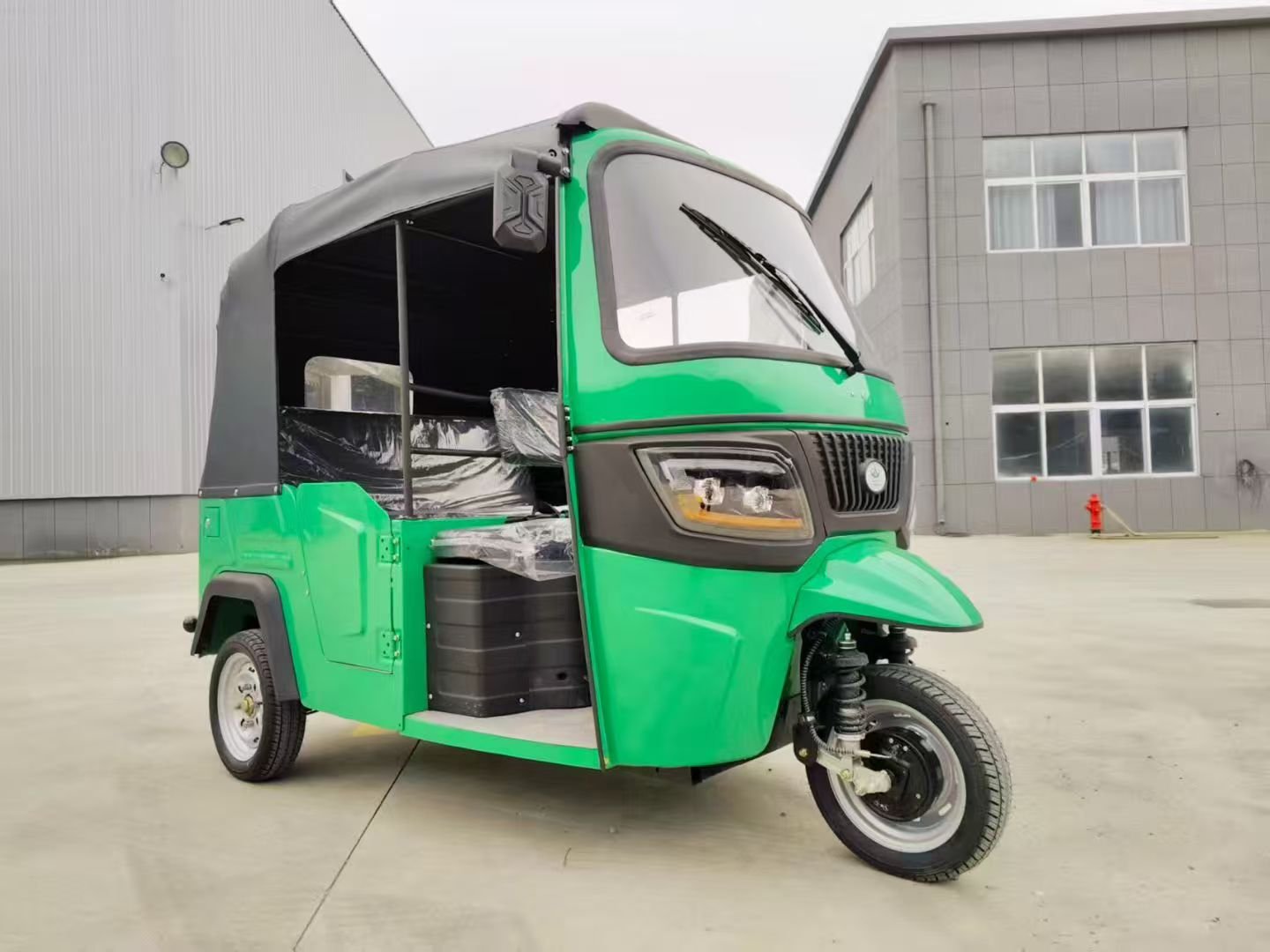

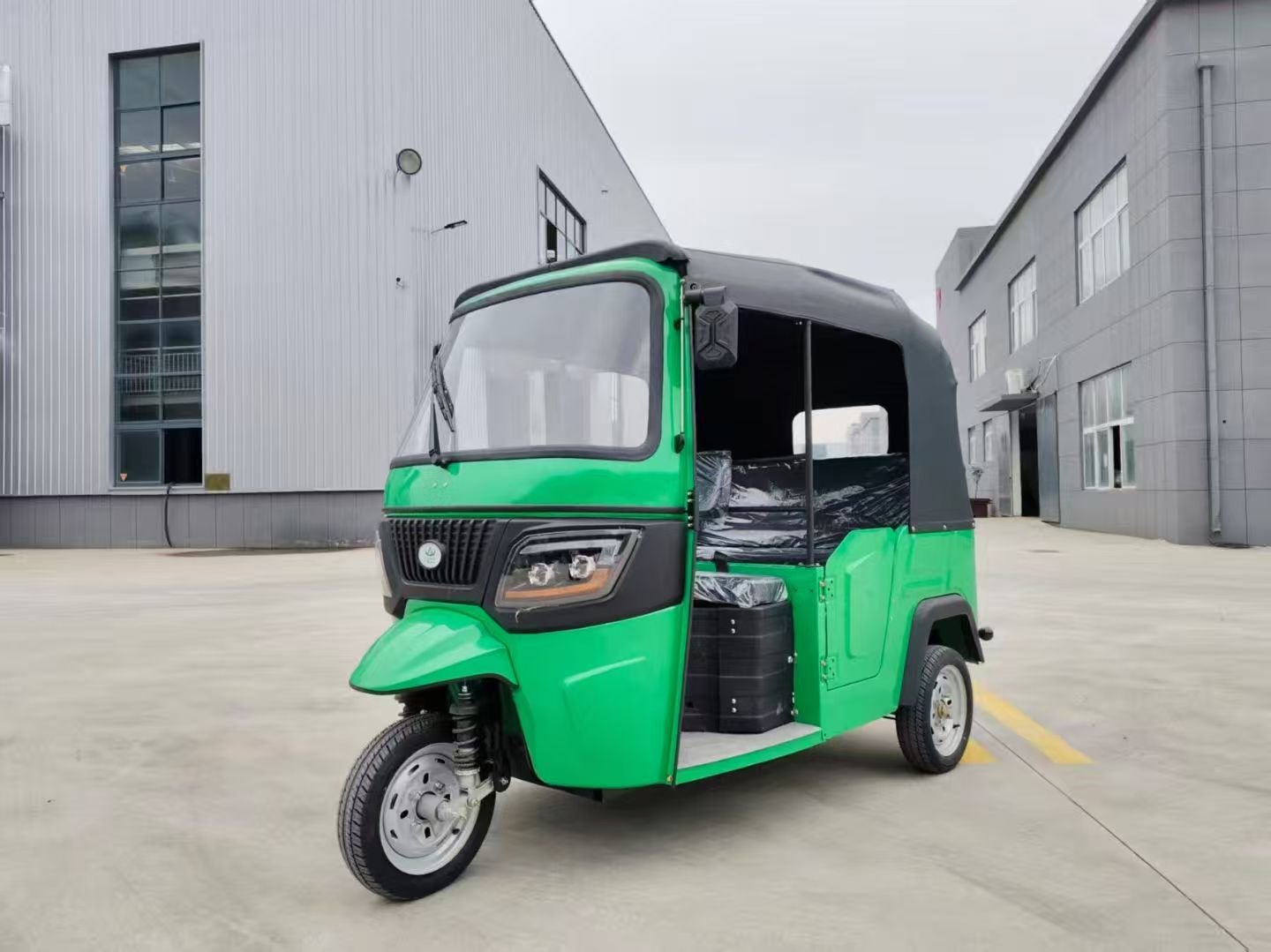

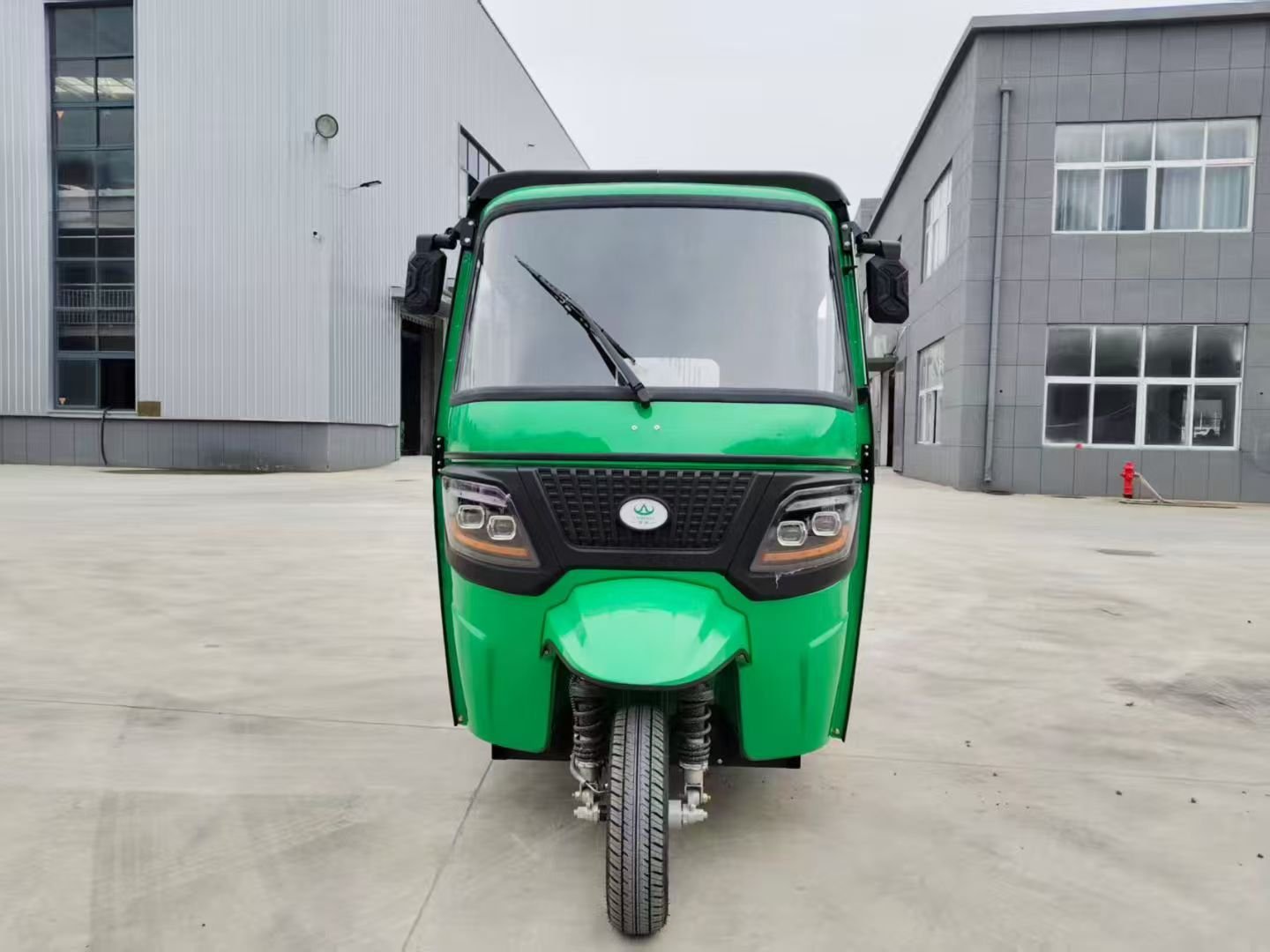

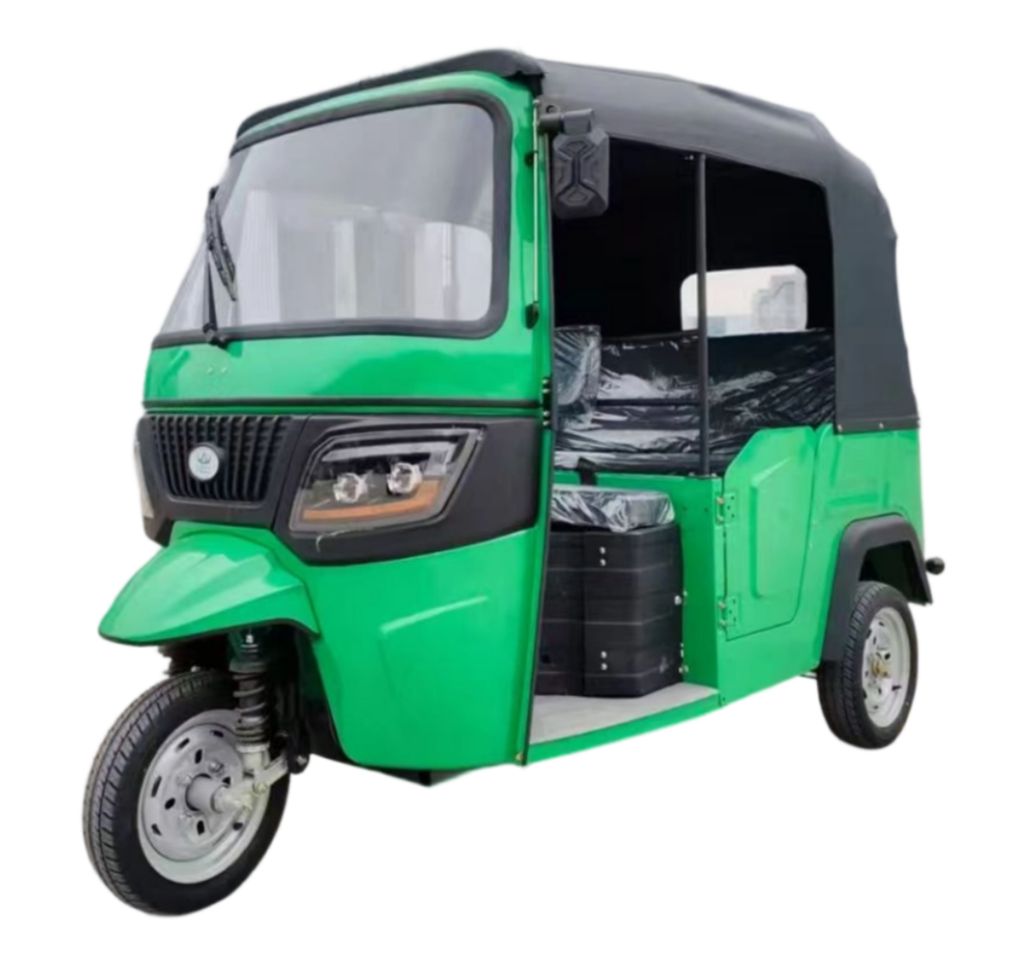

Two-row electric tuktuk
Description
Parameter |
||||
| Model | LB-ZK3WZ | |||
| Overall dimensions | 2550X1350X1800mm | |||
| Rated capacity | 4 people | |||
| Wheelbase | 1900mm | |||
| Track width | 1200mm | |||
| Ground clearance | 240mm | |||
| Minimum Turning Radius | 3m | |||
| Maximum operating speed | 60km/h | |||
| Maximum Gradability | 25% | |||
| Curb weight | 375kg(Excluding battery) | |||
| Rated load | 350kg | |||
| Range | 150km | |||
| Chargeing time | 8 Hours | |||
| Motor | 60/72V4500W AC asynchronous motor | |||
| Controller | 60/72V4500W AC asynchronous motor | |||
| Battery | 72V150AH Lithium Iron Phosphate Battery | |||
| Charger | Vehicle-mounted intelligent fully automatic charger | |||
| Light and Signal | LED Headlights, Left and Right Turn Signals, Brake Lights, Running Lights,Instrument (Panel), Electric Horn, Reverse Horn | |||
| Frame | Integral Welded Frame + Acid Pickling, Phosphating, Electrophoretic Coatingand Baking Paint | |||
| Power transmission | Rear-Mounted Drive, Equipped with Forward and Reverse Gears | |||
| Steering System | Handlebar-Type Steering Mechanism | |||
| Suspension | Front Suspension：Double wishbone spring fork | |||
| Rear suspension | Automotive-Grade Constant Velocity (CV) Joint-Type Independent ShockAbsorption Transmission System | |||
| Braking | Front and Rear Three-Wheel Drum-Type Hydraulic Brakes + Foot-OperatedMechanical Parking Brake | |||
| Tyre | Front Wheel：125/65—12 Rear Wheel：125/65—12 | |||
| Paint | High-Grade Automotive-Specific Paint | |||
| Vehidle Body | Steel Frame + Integrally Stamped Vehicle Body | |||
| IP | Injection-Molded Instrument Panel, Electric Door Lock, Instrument (Gauge),Combination Switch | |||
| Seat | Soft Seat with Injection-Molded Base, Foam Sponge and Leather + Backrest | |||
